TPJ-2 Type Paver Machine With Big Discount

2018-09-11

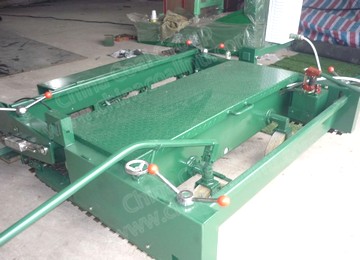

TPJ-2 Type Paver Machine With Big Discount for running way is the paving equipment of synthetic running track with high technical contained manufactured by our company .

Introduction of

TPJ-2 Type Paver Machine With Big Discount

TPJ-2 Type Paver Machine With Big Discount for running way is the paving equipment of synthetic running track with high technical contained manufactured by our company .

The machine is assembled the advanced the technology of Siemens frequency conversion step less speed regulation and the hydraulic gear , enhance the automaticity of paving .

Its performance satisfied the sports fields construction requirement and achieve and achieve the quality and technical specifition .

its highly effective ,low consumption ,high quality and easy operation and so many good characteristics is approved by domestic and foreign customers .

Main Parameter of

TPJ-2 Type Paver Machine With Big Discount

Name	Paver machine
Model	TPJ-2.5	TPJ-2.0	TPJ-1.5
Actual Width	2800mm	2300mm	1800mm
Paving Width	2500mm	2000mm	1500mm
Moving Speed	0.8-6m/min	0.8-6m/min	0.8-6m/min
Paving Capability	500 sq.m./h	400 sq.m./h	300 sq.m./h
Power	8kw	8kw	8kw
Temperature adjustment for electric heating board	90-120 centigrade	90-120 centigrade	90-120 centigrade
Machine Weight	850kg	700kg	600kg
Dimension	30001800720mm	25001700720mm	20001700720mm
Packing Style	Wooden case	Wooden case	Wooden case
