TPJ-2.5 Rubber Paver Machine for Running Way/ runway In Proper Price and Reasonable Quality

TPJ-2.5 Rubber Paver Machine for Running Way/ runway In Proper Price and Reasonable Quality

2018-09-12

TPJ-2.5 Rubber Paver Machine for Running Way/ runway In Proper Price and Reasonable Quality is a technology with higher levels of plastic track

Introduction of

TPJ-2.5 Rubber Paver Machine for Running Way/ runway In Proper Price and Reasonable Quality

TPJ-2.5 Rubber Paver Machine for Running Way/ runway In Proper Price and Reasonable Quality is a technology with higher levels of plastic track

laying machine, which employs advanced technology and Siemens frequency

stepless speed regulation of hydraulic gear to increase their degree of automation

built performance of the construction of venues able to satisfy the requirements

of the quality of the playing field to achieve target, with high efficiency, low

consumption,high-quality and easy operation, with long-term use of authentication,

by the majority of users at home and abroad.


Structure&Function:

1 Used for spreading or paving the bottom layer of plastic cement stadiums.


2 Framework: with a firm and stable welded H-type structure, and a rust-proof paint

layer, it may accommodate any poor condition in the construction site.


3 Front scratch board: welded joint structure, the ground clearance is manually

adjustable through a screw, which control the thickness of the floor layer. The width

may be adjusted through a limiting board.


4 Driving device: the main driving system is a motor-driven caterpillar chain,

with the speed smoothly controlled by a frequency converter, which is

feature as stably and precisely moving ahead or back in an motion. It may

be equipped with different caterpillar belt for different bottoms.


5 Walking Mechanism: the spreading machine may be manually moved or relocated

through a walking mechanism consisting of advanced ratchet lever system and lift.


6 Screed: The screed has four functions, viz. the adjustment of height, angle,

temperature, and vibration. The plastic cement material is vibrated, compacted and

paves while passing through the screed.


Main Parameter of

TPJ-2.5 Rubber Paver Machine for Running Way/ runway In Proper Price and Reasonable Quality

Name

Paver machine

Model

TPJ-2.5

TPJ-1.5

Actual Width

2800mm

2100mm

Paving  Width

2500mm

1500mm

Moving  Speed

0.8-6m/min

0.8-6m/min

Paving   Capability

500 sq.m./h

300 sq.m./h

Power

8kw

8kw

Temperature adjustment for electric

heating board

90-120 centigrade

90-120 centigrade

Machine  Weight

850kg

700kg

Dimension

3000*1800*720mm

2200*1700*720mm

Packing Style

Wooden case

Wooden case

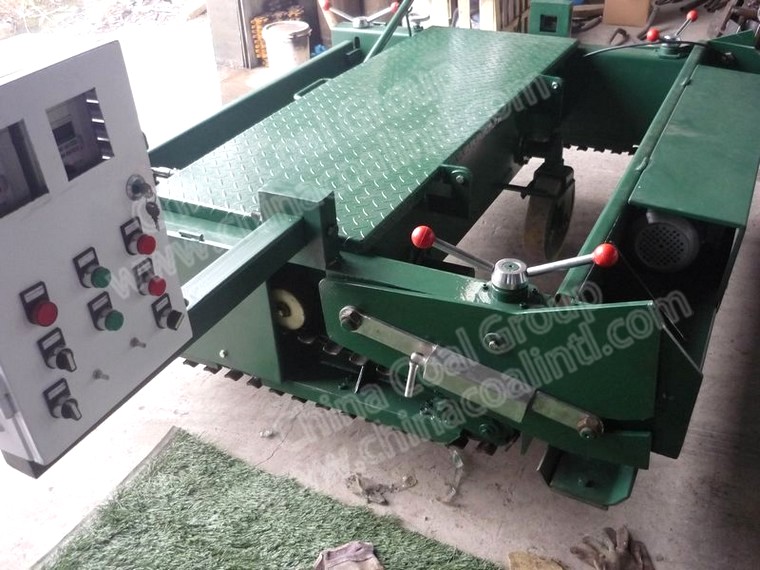

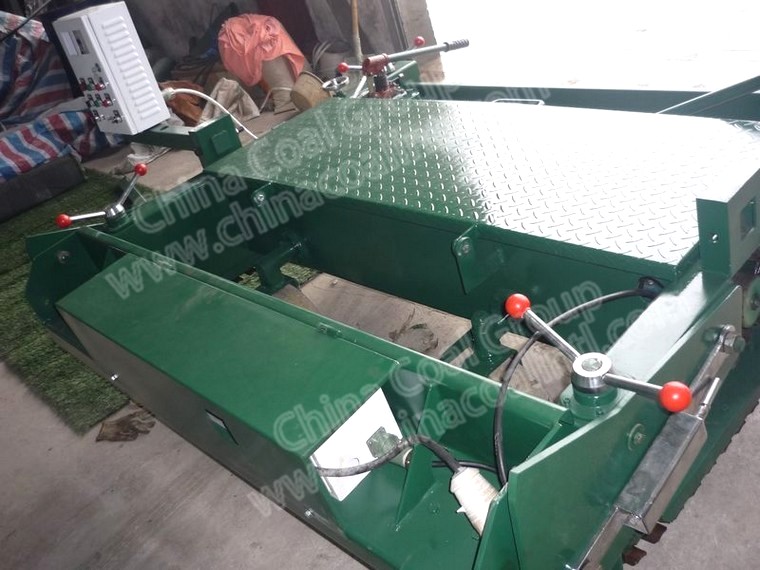

Photos Of

TPJ-2.5 Rubber Paver Machine for Running Way/ runway In Proper Price and Reasonable Quality

  • TPJ-2.5 Rubber Paver Machine for Running Way/ runway In Proper Price and Reasonable Quality
  • TPJ-2.5 Rubber Paver Machine for Running Way/ runway In Proper Price and Reasonable Quality
