TPJ-2.5 2500mm Electrical Rubber Paver Machine For Runway

TPJ-2.5 2500mm Electrical Rubber Paver Machine For Runway

2019-12-11

TPJ-2.5-type paver machine is a technology with higher levels of plastic track laying machine, which employs advanced technology and Siemens frequency stepless speed regulation of hydraulic gear to in

Introduction of

TPJ-2.5 2500mm Electrical Rubber Paver Machine For Runway

TPJ-2.5 2500mm Electrical rubber Paver Machine is a technology with higher levels of plastic track laying machine, which employs advanced technology and Siemens frequency stepless speed regulation of hydraulic gear to increase their degree of automation built performance of the construction of venues able to satisfy the requirements of the quality of the playing field to achieve target, with high efficiency, low consumption, high-quality and easy operation, with long-term use of authentication, by the majority of users at home and abroad.
TPJ-2.5 2500mm Electrical rubber Paver Machine Structure&Function:
1. Used for spreading, paving the bottom layer of plastic cement stadiums.
2. Framework: with a firm and stable welded H-type structure, and a rust-proof paint layer, it may accommodate any poor condition in the construction site.
3. Front scratch board: welded joint structure, the ground clearance is manually adjustable through a screw, which control the thickness of the floor layer. The width may be adjusted through a limiting board.
4. Driving device: the main driving system is a motor-driven caterpillar chain, with the speed
smoothly controlled by a frequency converter, which is feature as stably and precisely moving
ahead or back in an motion. It may be equipped with different caterpillar belt for different bottoms.
5.Walking Mechanism: the spreading machine may be manually moved or relocated through a walking mechanism consisting of advanced ratchet lever system and lift.
6.Screed: The screed has four functions, viz. the adjustment of height, angle, temperature, and
vibration. The plastic cement material is vibrated, compacted and paves while passing through the screed.

Main Parameter of

TPJ-2.5 2500mm Electrical Rubber Paver Machine For Runway

Name

Paver machine

Model

TPJ-2.5

TPJ-2.0

TPJ-1.5

Actual Width

2800mm

2300mm

1800mm

Paving Width

2500mm

2000mm

1500mm

Moving Speed

0.8-6m/min

0.8-6m/min

0.8-6m/min

Paving Capability

500 sq.m./h

400 sq.m./h

300 sq.m./h

Power

8kw

8kw

8kw

Temperature adjustment for

electric heating board

90-120 centigrade

90-120 centigrade

90-120 centigrade

Machine Weight

850kg

700kg

600kg

Dimension

3000*1800*720mm

2500*1700*720mm

2000*1700*720mm

Packing Style

Wooden case

Wooden case

Wooden case


Photos Of

TPJ-2.5 2500mm Electrical Rubber Paver Machine For Runway

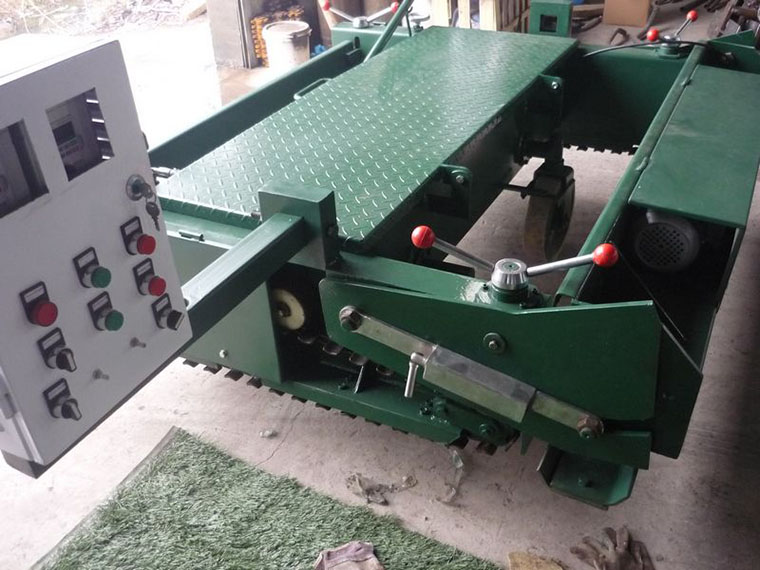

  • TPJ-2.5 2500mm Electrical Rubber Paver Machine For Runway

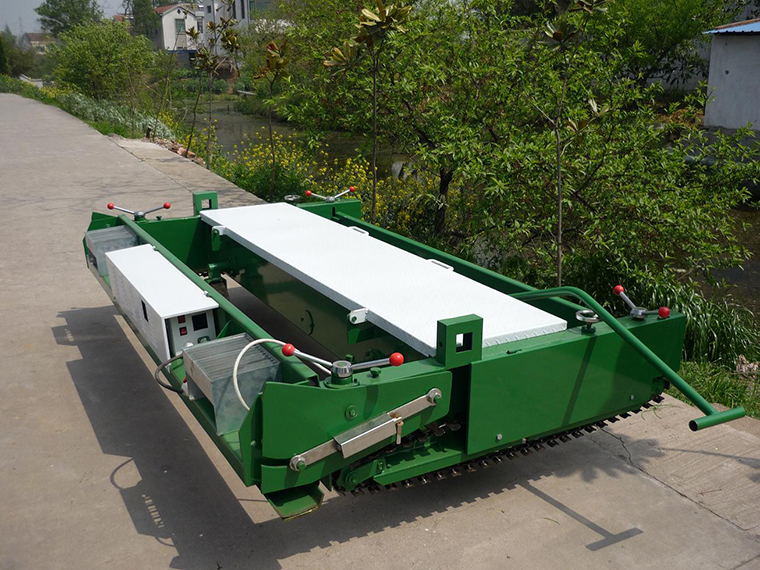

  • TPJ-2.5 2500mm Electrical Rubber Paver Machine For Runway
