TPJ-1.5 1500mm Paver Machinery for School Playground Rubber Running Track

TPJ-1.5 1500mm Paver Machinery for School Playground Rubber Running Track

2019-12-11

TPJ-1.5 Paver machinery for running way is the paving equipment of synthetic running track with high technical contained manufactured by our company .

Introduction of

TPJ-1.5 1500mm Paver Machinery for School Playground Rubber Running Track

1.TPJ-1.5 Paver machinery for running way is the paving equipment of synthetic running track with high technical contained manufactured by our company .
2.The machine is assembled the advanced the technology of Simens frequency conversion stepless speed regulation and the hydraulic gear , enhance the automaticity of paving .
3.Its performance satisfied the sports fields construction requirement and achieve and achieve the quality and technical specification .
4.its high effectiveness ,low consumption ,high quality and easy operation and so many good characteristics is approved by domestic and foreign customers .

Main Parameter of

TPJ-1.5 1500mm Paver Machinery for School Playground Rubber Running Track

Name

Paver machine

Model

TPJ-2.5

TPJ-2.0

TPJ-1.5

Actual Width

2800mm

2300mm

1800mm

Paving Width

2500mm

2000mm

1500mm

Moving Speed

0.8-6m/min

0.8-6m/min

0.8-6m/min

Paving Capability

500 sq.m./h

400 sq.m./h

300 sq.m./h

Power

8kw

8kw

8kw

Temperature adjustment for

electric heating board

90-120 centigrade

90-120 centigrade

90-120 centigrade

Machine Weight

850kg

700kg

600kg

Dimension

3000*1800*720mm

2500*1700*720mm

2000*1700*720mm

Packing Style

Wooden case

Wooden case

Wooden case

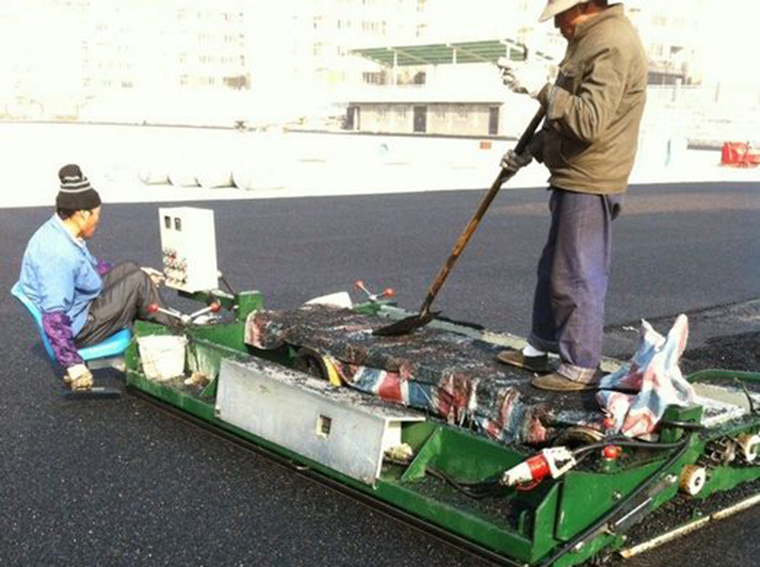

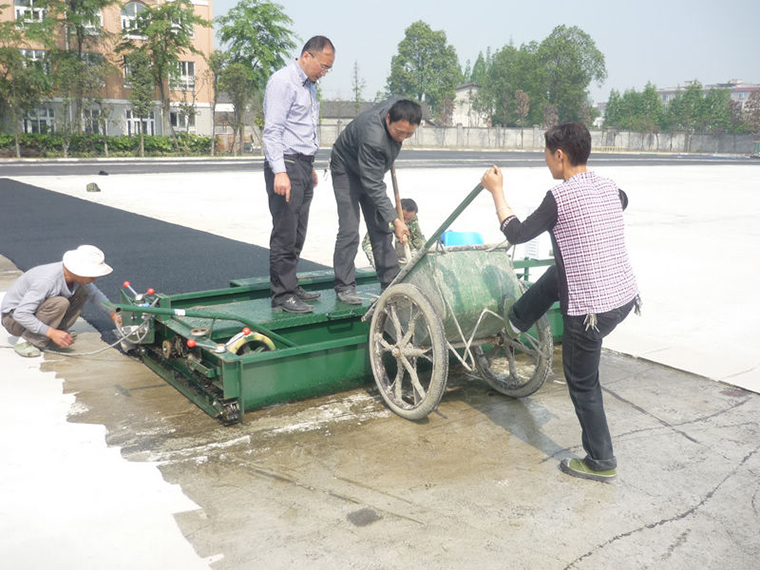

Photos Of

TPJ-1.5 1500mm Paver Machinery for School Playground Rubber Running Track

  • TPJ-1.5 1500mm Paver Machinery for School Playground Rubber Running Track
  • TPJ-1.5 1500mm Paver Machinery for School Playground Rubber Running Track
